EV charger cables cooling pump T6102
Product Parameters:
Voltage Range: DC 6-24V
Rating Power : 6V: 2-12W 12V: 3-18W 24V: 5-18W
Static Water Head: 1-5m
Static flow rate: 4-11L/min
Application:
Automobile water cycle, small fountain, aquarium, etc
| ■ Product application |
| Circulating cooling of charging stations |
| ■ Product information |
| Ambient temperature:-35 to 50℃ |
| Medium temperature:-30 to 80℃ |
| MediumClear water,antifreeze |
| Weight:1.1Kg |
| Insulation level:F |
| Service life:20000 hours |

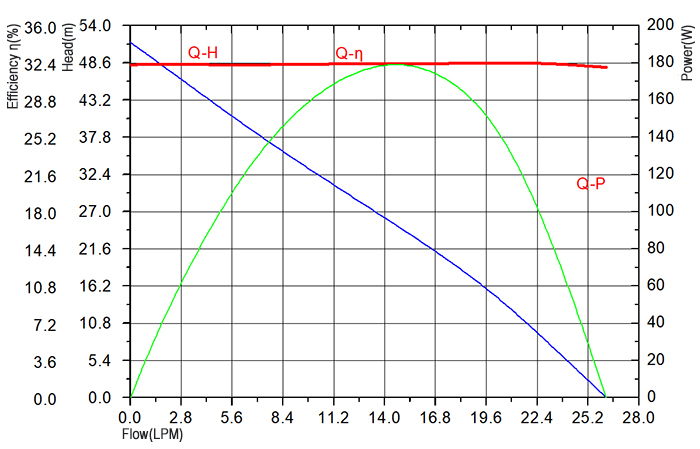

■ Curve
Rated Voltage | Voltage Range | Rated Current | Max Head | Max Flow | Rated Poweer | Max Noise |
V | V | A | m | L/min | W | dB（A） |
24 | 15-18 | 7.2 | 48 | 22 | 180 | ≤50 |
